Our products: the six families.
Every valve NF Teguh quotes belongs to one of six patterns. Each has its own sheet — this page is the index.
NF Teguh stocks and supplies six industrial valve families: gate, globe, ball, plug, butterfly and check. Each family page explains how the valve works, where the pattern fits, and what an enquiry should state — size, pressure class, body material, end connection and operator. Send your valve list by phone, email or WhatsApp and the counter quotes from stock or against your specification.
The six families at a glance

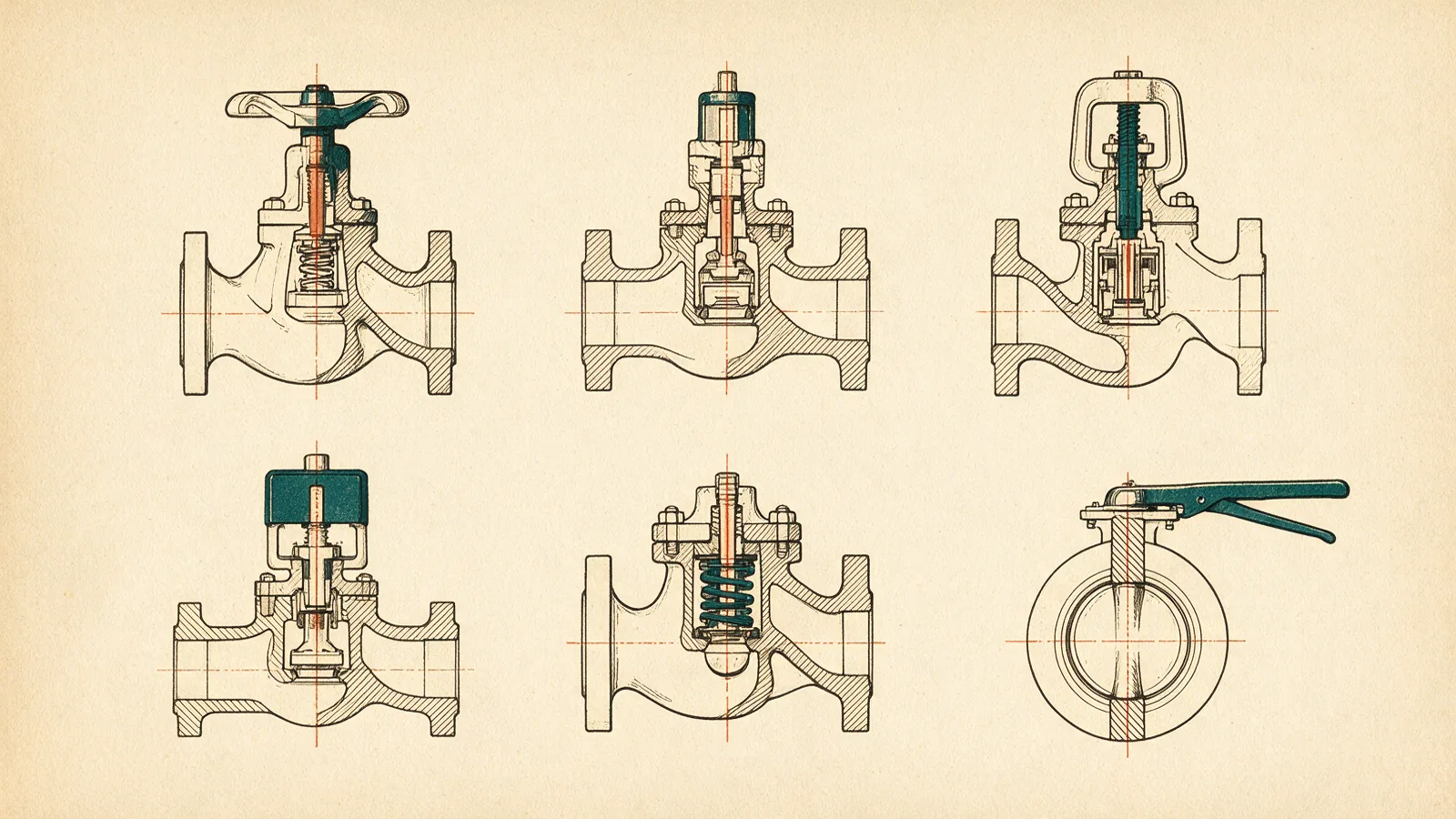

Six cutaways, six duties. The drawings below are the same sections used across this site — red marks the seats, blue the flow. Open a family’s sheet for how the pattern works, where it fits, and what its enquiry should state.
Gate valve
Isolation only — never throttle. K ≈ 0.15
02 · GLOBEGlobe valve
Throttling and regulation off a seat. K ≈ 6
03 · BALLBall valve
Fast quarter-turn isolation, tight shutoff. K ≈ 0.05
04 · PLUGPlug valve
Isolation, diverting and dirty service. K ≈ 0.3
05 · BUTTERFLYButterfly valve
Large bore, low weight, coarse control. K ≈ 0.45
06 · CHECKCheck valve
Stops reverse flow — no operator at all. K ≈ 2
K = typical resistance coefficient, fully open. Order-of-magnitude reference only — confirm against the manufacturer’s published data for the size and trim quoted.
Choosing a family by duty
Start from what the line must do, not from a catalogue. Positive shutoff on a line that is otherwise always open points to a gate valve; regulating flow points to a globe valve — the trade is set out in gate valve vs globe valve. Fast quarter-turn shutoff with a tight seal is ball valve territory; large bores where weight and cost dominate favour a butterfly valve, compared in ball valve vs butterfly valve. Dirty, scaling or diverting service suits a plug valve, and a check valve is the one pattern with no operator — the flow itself works it.
What every enquiry states
- Size & pressure class
- End connection — flanged, butt-weld, threaded
- Body & trim material
- Service fluid and temperature
- Operator — handwheel, gear, lever, actuated
- Test & certification required
- Class
- What a class marking permits is on the pressure class reference
- Papers
- Test reports and material certificates — name them on the order
- Guide
- Specifying industrial valves, end to end
- Counter
- Phone, email or WhatsApp
How quotation works
